CORAROC PARTS

Size difference BR-80 and BR-100

Size difference CHA-80 and CHA-100

Branch BR-80/100

The BR-80/100 is a branching aquascape piece that connects with any other piece in the same system. Each piece features unique holes, outcrops, and shapes for a natural look. Corals can be mounted using CHA-80/100 or CHB-80/100 holders.

Size (L×W×H): 100-System: 87×87 mm | 80-System: 68×68 mm
Weight: 100-System: 62 g | 80-System: 31 g

Shelf Rock SH-80/100

The SH-80/100 is a shelving aquascape piece that connects with any other piece in the same system. Each piece features unique holes, outcrops, and shapes. Corals can be mounted using CHA-80/100 or CHB-80/100 holders.

Size (L×W×H): 100-System: 137×125×53 mm | 80-System: 107×99×42 mm
Weight: 100-System: 116 g | 80-System: 58 g

Branch Y-80/100

The Y-80/100 is a branching aquascape piece that connects with any other piece in the same system. Each piece features unique holes, outcrops, and shapes. Corals can be mounted using CHA-80/100 or CHB-80/100 holders.

Size (L×W×H): 100-System: 69×65×45 mm | 80-System: 56×53×36 mm
Weight: 100-System: 29 g | 80-System: 17 g

Connector CO-80/100

The CO-80/100 is a connection piece for aquascaping, linking all pieces within the same system. Twist firmly by hand for a secure connection. One connector is required per joint.

Size (Ø×H): 100-System: Ø38×20 mm | 80-System: Ø30×16 mm
Weight: 100-System: 19 g | 80-System: 10 g

Coral Holder CHA-80/100

The CHA-80/100 is a screw-type coral holder. Place your frag or coral in the hole, with or without the spacer depending on size, and twist the screw to secure. Install in a connection point of the same system size.

Size (Ø×H): 100-System: Ø44×22 mm | 80-System: Ø34×17 mm
Weight: 100-System: 15 g | 80-System: 8 g

Coral Holder CHB-80/100

The CHB-80/100 is a glue-type coral holder. Glue your frag or coral and let it cure, then place the holder in a connection point of the same system size. It can also be used to cover open connections where no coral is placed.

Size (Ø×H): 100-System: Ø44×20 mm | 80-System: Ø34×16 mm
Weight: 100-System: 12 g | 80-System: 7 g

System Connector 100-80

The 100-80 connector allows you to merge pieces between the 100-System and 80-System.

Size (Ø×H): Ø45×24 mm
Weight: 9 g

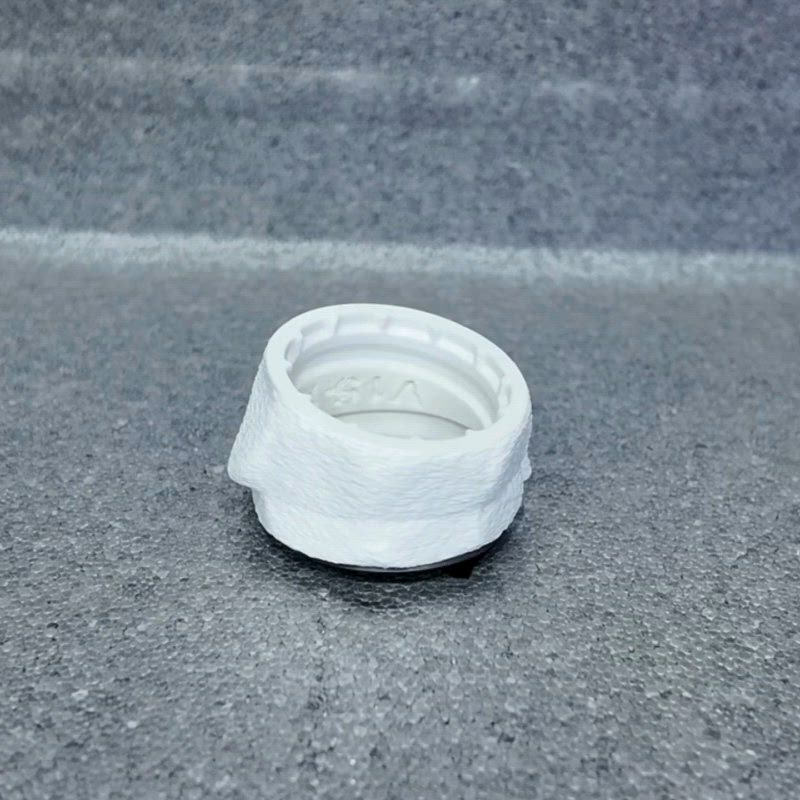

Angle V15-80/100

The V15-80/100 is a 15° angle piece. Use with a CO connector in the same system size.

Size (Ø×H): 100-System: Ø50×32 mm | 80-System: Ø40×25 mm
Weight: 100-System: 12 g | 80-System: 7 g

Angle V30-80/100

The V30-80/100 is a 30° angle piece. Use with a CO connector in the same system size.

Size (Ø×H): 100-System: Ø50×42 mm | 80-System: Ø40×34 mm
Weight: 100-System: 13 g | 80-System: 8 g

Angle V45-80/100

The V45-80/100 is a 45° angle piece. Use with a CO connector in the same system size.

Size (Ø×H): 100-System: Ø50×50 mm | 80-System: Ø40×40 mm
Weight: 100-System: 15 g | 80-System: 9 g

Angle V60-80/100

The V60-80/100 is a 60° angle piece. Use with a CO connector in the same system size.

Size (Ø×H): 100-System: Ø50×52 mm | 80-System: Ø40×42 mm
Weight: 100-System: 15 g | 80-System: 9 g

Angle V75-80/100

The V75-80/100 is a 75° angle piece. Use with a CO connector in the same system size.

Size (Ø×H): 100-System: Ø50×54 mm | 80-System: Ø40×43 mm
Weight: 100-System: 19 g | 80-System: 11 g

CoraroC V1–V2 Connector COv1-100

The COv1-100 allows you to connect CoraroC v1 pieces to v2. This piece is only needed if you already have v1 components, which are no longer in production.

Size (Ø×H): Ø38×18 mm
Weight: 12 g

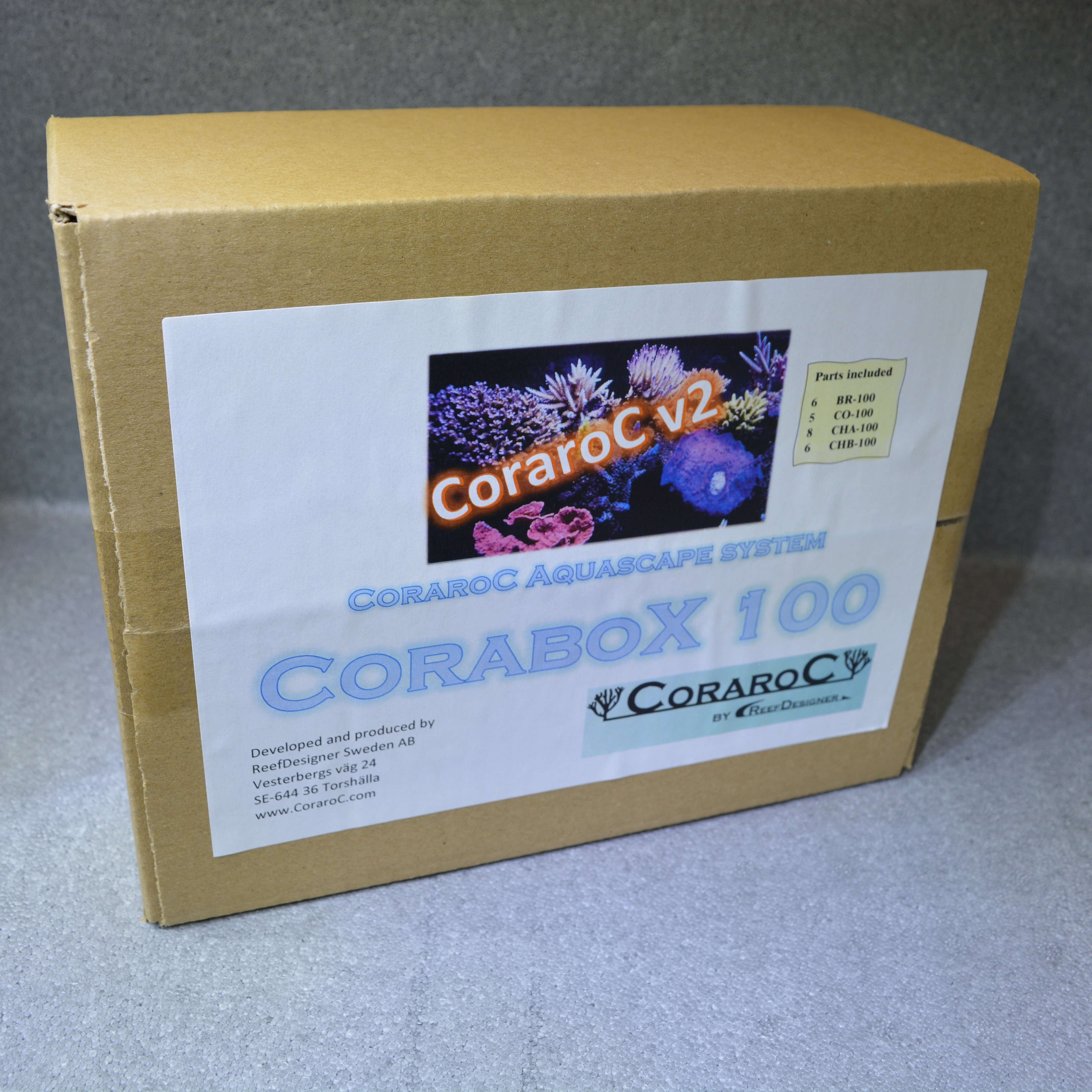

CoraboX 100

The CoraboX 100 is our smallest kit, ideal for nano tanks up to 100 liters or as an addition to existing scapes. For best results, use it with CoraroC foots. This kit pairs perfectly with CorafloaT Nano to create a floating scape

CoraboX 200

The CoraboX 200 is our medium kit, ideal for tanks 100–200 liters or as an addition to existing scapes. For best results, use it with CoraroC foots. This kit pairs perfectly with CorafloaT Medium to create a floating scape.

CoraboX 300

The CoraboX 300 is our largest kit, ideal for tanks 200–300 liters or as an addition to existing scapes. For best results, use it with CoraroC foots. This kit pairs perfectly with CorafloaT Medium to create a floating scape.

Kit Includes:

• 6 × BR-100

• 5 × CO-100

• 8 × CHA-100

• 6 × CHB-100

Box Size (L×W×H): 240×200×100 mm
Weight: 770 g

Kit Includes:

• 7 × BR-100

• 3 × SH-100

• 9 × CO-100

• 19 × CHA-100

• 18 × CHB-100

Box Size (L×W×H): 260×210×170 mm
Weight: 1,600 g

Kit Includes:

• 10 × BR-100

• 4 × SH-100

• 13 × CO-100

• 26 × CHA-100

• 24 × CHB-100

Box Size (L×W×H): 320×230×180 mm
Weight: 2,200 g

Scape Holder for Rimless Tanks FL-100

The FL-100 connects your scape to the glass of a rimless tank and attaches to FH-100. Suitable for glass thicknesses of 5–19 mm, it requires 15 mm of space outside the glass. Assembly requires a flathead screwdriver.

Size (L×W×H): 95×105×35 mm
Weight: 85 g

Scape Starter FH-100

The FH-100 connects to FL-100on one side and to FC-100 or FV-100 on the other. The included screw locks the piece into FL-100. Delivered with 2 lock clips.

Size (L×W×H): 80×60×27 mm
Weight: 15 g

Scape Connection FC-100

The FC-100 provides 3 connection points to FH-100, FE-100, or via FM-100 to FV-100 and other FC-100 pieces. The top connection accepts a CO-100 for branching scapes. It can be glued to glass with silicone in a dry tank or underwater glue (e.g., Orca) in a running tank. It can also be filled with sand or reef cement to serve as a foot on the bottom.

Size (L×W×H): 94×84×37 mm
Weight: 38 g

Connection FM-100

The FM-100 connects FC-100 and FV-100. Delivered with 2 lock clips.

Size (L×W×H): 56×21×25 mm
Weight: 9 g

Angle Piece FV-100

The FV-100 connects on two sides to FH-100, FE-100, and via FM-100 to FC-100 or other FV-100 pieces. It can also be filled with sand or reef cement to serve as a foot on the tank bottom.

Size (L×W×H): 92×86×30 mm
Weight: 29 g

End Piece FE-100

The FE-100 connects to FC-100 and FV-100 to close open connections. Delivered with 2 lock clips.

Size (L×W×H): 78×52×26 mm
Weight: 15 g

Foot for Glass and Rock FR-100

The FR-100 can be glued to rockwork using epoxy or reef cement, or to glass with silicone (dry tank) or underwater glue (running tank, e.g., Orca). The top features a CO-100 connection for starting branching scapes.

Size (Ø×H): Ø76×25 mm
Weight: 30 g

Foot RF-100

The RF-100 is a rock foot with a pre-glued FR-100 on top. It has a flat bottom and is ready to place on the tank floor.

Size (L×W×H): approx. 220×165×35 mm
Weight: approx. 600 g

Foot GF-100

The GF-100 is a glass foot with a pre-glued FR-100 on top. Ideal for tanks with sand, as the glass will be fully covered.

Size (L×W×H): 220×165×31 mm
Weight: 600 g

CorafloaT Nano

The CorafloaT Nano kit lets you create a floating scape using the included glass holder or by gluing pieces directly to your glass. It can also be used as a foot on the tank bottom. The FV-100 and FC-100 pieces can be filled with sand or reef cement for extra weight. Ideal for use with CoraboX 100.

CorafloaT Medium

The CorafloaT Medium kit lets you create a floating scape using the included glass holder or by gluing the pieces directly to your glass. It can also serve as a foot on the tank bottom. The FV-100 and FC-100 pieces can be filled with sand or reef cement for added weight. Ideal for use with CoraboX 200 or CoraboX 300.

Kit Includes:

• 1 × FL-100

• 1 × FH-100

• 2 × FM-100

• 1 × FC-100

• 2 × FE-100

• 1 × CO-100

• 1 × FV-100

• 8 × FM-100

Box Size (L×W×H): 180×125×90 mm
Weight: 320 g

Kit Includes:

• 2 × FL-100

• 2 × FH-100

• 6 × FM-100

• 2 × FC-100

• 2 × FE-100

• 2 × CO-100

• 5 × FV-100

• 20 × FM-100

Box Size (L×W×H): 180×135×135 mm
Weight: 700 g
